MP10 Series rotary union

Features

  • Connection Sizes:1/8", 1/4", 3/8", 1/2", 3/4", 1"
  • Connection Type:NPT & BSPP threads standard
  • Media Types:Water Air vacuum hydraulic,Oil

MP10 Operating Info

  • Max. Pressure: 300BAR
  • Max. Rotational Speed: 300 RPM
  • Temperature Range: -20°C to 150° C

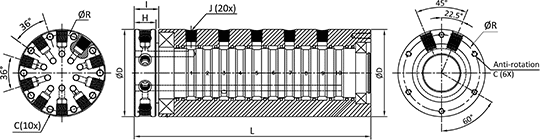

Model J(G/NPT) ΦR C ΦD H I L
MP-01-1001 1/8" 54.4 M6 64.5 19.5 21.5 192.5
MP-01-1002 1/4" 62.2 M8 74.8 22.4 24.4 209.5
MP-01-1003 3/8" 83.5 M8 99.5 30.2 32.2 263.2
MP-01-1004 1/2" 92.4 M8 104.8 36.2 38.2 305.3

All of the specfications are accepted custom, any requirments, please feel free to contact us.
