MP2 Series rotary union

Features

  • Connection Sizes:1/8", 1/4", 3/8", 1/2", 3/4", 1"
  • Connection Type:NPT & BSPP threads standard
  • Media Types:Water Air vacuum hydraulic,Oil

MP2 Operating Info

  • Max. Pressure: 300BAR
  • Max. Rotational Speed: 500RPM
  • Temperature Range: -20°C to 150°C

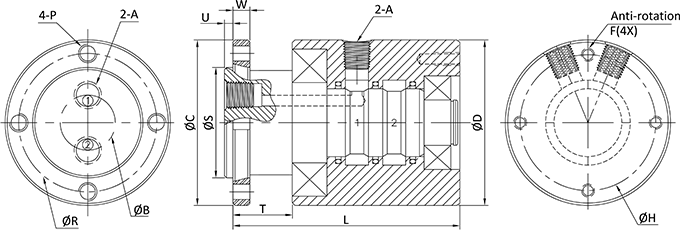

Model A(G/NPT) ΦB ΦD ΦR ΦS U W T P F L
MP-201 1/8" 19.5 54.5 44.5 34.5 3.2 5.9 22 5.5mm M5 101
MP-202 1/4" 22.5 64.5 54.5 42.5 3.2 5.9 23.5 7mm M6 108
MP-203 3/8" 25.5 74.5 64.5 51.5 3.2 5.9 23.5 7mm M6 114
MP-204 1/2" 32.5 89.5 77.5 61.5 3.2 7.9 25.5 9mm M8 128.2




Model/ J(G/NPT) ΦB C ΦD H I L
AP-201 1/8" 38.8 M5 49.6 19.5 21.5 80.5
AP-202 1/4" 47.8 M5 58.6 22.4 24.4 92.1
AP-203 3/8" 57.4 M6 68.9 30.2 32.2 105.4
AP-204 1/2" 65.4 M8 79.5 36.2 38.2 138.5

All of the specfications are accepted custom, any requirments, please feel free to contact us.
