MP3 Series rotary union

Features

  • Connection Sizes:1/8", 1/4", 3/8", 1/2", 3/4", 1"
  • Connection Type:NPT & BSPP threads standard
  • Media Types:Water Air vacuum hydraulic,Oil

MP3 Operating Info

  • Max. Pressure: 300BAR
  • Max. Rotational Speed: 400RPM
  • Temperature Range:-20°C to 150°C

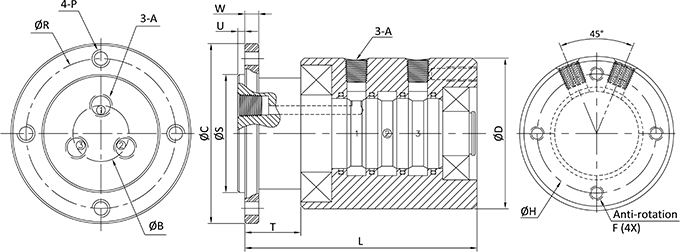

Model A(G/NPT) ΦB ΦD ΦR ΦS U W T P F L
MP-301 1/8" 20.5 54.5 44.5 36.5 3.2 5.9 22 7mm M6 110
MP302 1/4" 23.5 64.5 54.5 42.5 3.2 5.9 25 7mm M6 118.3
MP303 3/8" 28.5 74.5 64.5 51.5 3.2 5.9 25 7mm M6 125.2
MP304 1/2" 34.5 89.5 77.5 61.5 3.2 7.9 28 9mm M8 144.5

All of the specfications are accepted custom, any requirments, please feel free to contact us.
