MP4 Series rotary union

Features

  • Connection Sizes:1/8", 1/4", 3/8", 1/2", 3/4", 1"
  • Connection Type:NPT & BSPP threads standard
  • Media Types:Water Air vacuum hydraulic,Oil

MP4 Operating Info

  • Max. Pressure: 300BAR
  • Max. Rotational Speed: 400RPM
  • Temperature Range: -20°C to 150°C

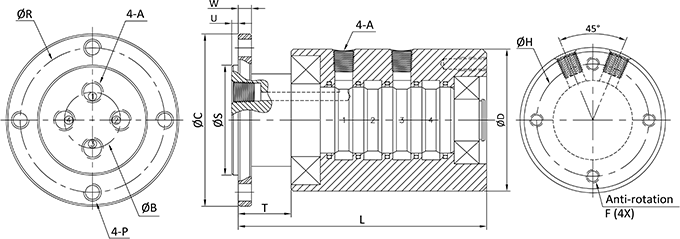

Model A(G/NPT) ΦB ΦD ΦR ΦS U W T P F L
MP-401 1/8" 21.5 54.5 44.5 36.5 3.2 5.9 22 7mm M6 122.2
MP-402 1/4" 23.5 64.5 54.5 43.8 3.2 5.9 25 7mm M6 130.3
MP-403 3/8" 31.5 80 68.5 54.5 3.2 5.9 25 9mm M8 138.4
MP-404 1/2" 37.5 95.8 83.4 65.5 3.2 7.9 28 9mm M8 155.2




Model J(G/NPT) ΦR C ΦD H I L
AP-401 1/8" 47.8 M6 54.8 19.5 21.5 116.9
AP-402 1/4" 47.8 M6 58.6 22.4 24.4 128.5
AP-403 3/8" 63.8 M6 74.5 30.2 32.2 154.2
AP-404 1/2" 73.4 M8 84.6 36.2 38.2 175.6

All of the specfications are accepted custom, any requirments, please feel free to contact us.
