MP6 Series rotary union

Features

  • Connection Sizes:1/8", 1/4", 3/8", 1/2", 3/4", 1"
  • Connection Type:NPT & BSPP threads standard
  • Media Types:Water Air vacuum hydraulic,Oil

MP6 Operating Info

  • Max. Pressure: 300BAR
  • Max. Rotational Speed: 400 RPM
  • Temperature Range: -20°C to 150° C

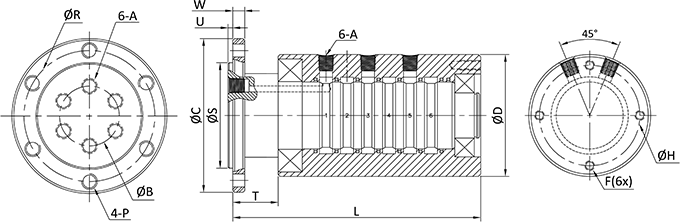

Model A(G/NPT) ΦB ΦD ΦR ΦS U W T P F L
MP-601 1/8" 35.5 74.8 64.3 51.5 3.2 5.9 22 7mm M6 145.2
MP-602 1/4" 42.8 88.6 77.8 62.8 3.2 7.9 30 9mm M8 158.8
MP-603 3/8" 44.6 94.7 84.3 68.4 3.2 7.9 30 9mm M8 169.4
MP-604 1/2" 52.5 104.8 93.4 78.5 3.2 7.9 30 9mm M8 202.3



Model J(G/NPT) ΦR C ΦD H I L
AP-601 1/8" 48.6 M6 59.8 19.5 21.5 148.6
AP-602 1/4" 53.5 M6 64.2 22.4 24.4 163.5
AP-603 3/8" 72.3 M8 83.6 30.2 32.2 185.2
AP-604 1/2" 82.6 M8 94.5 36.2 38.2 214.5

All of the specfications are accepted custom, any requirments, please feel free to contact us.
