MP8 Series rotary union

Features

  • Connection Sizes:1/8", 1/4", 3/8", 1/2", 3/4", 1"
  • Connection Type:NPT & BSPP threads standard
  • Media Types:Water Air vacuum hydraulic,Oil

MP8 Operating Info

  • Max. Pressure: 300BAR
  • Max. Rotational Speed: 400 RPM
  • Temperature Range: -20°C to 150°C

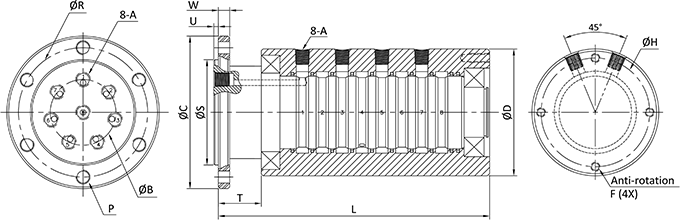

Model A(G/NPT) ΦB ΦD ΦR ΦS U W T P F L
MP-801 1/8" 41.5 84.8 74.5 60.5 3.2 7.9 28 7mm M6 172.5
MP-802 1/4" 48.3 94.8 83.4 69.3 3.2 7.9 30 9mm M8 188.8
MP-803 3/8" 51.2 104.8 93.5 76.5 3.2 8.9 30 9mm M8 231.5
MP-804 1/2" 62.8 119.6 107.8 92.8 3.2 8.9 30 9mm M8 252.1



Model J(G/NPT) ΦR C ΦD H I L
AP-801 1/8" 48.6 M6 59.8 19.5 21.5 168.5
AP-802 1/4" 56.8 M8 69.8 22.4 24.4 183.5
AP-803 3/8" 82.5 M8 94.5 30.2 32.2 220.5
AP-804 1/2" 86.4 M8 98.6 36.2 38.2 253.1

All of the specfications are accepted custom, any requirments, please feel free to contact us.
