ETW25 series electric slip ring

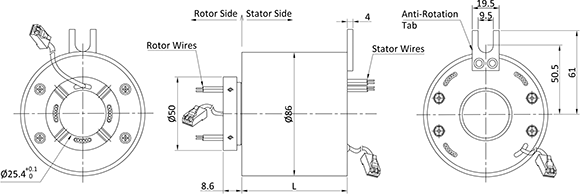

  • through hole 25.4 mm, OD 86 mm, 1000M Ethernet + 1~22circuits power/signal
  • ETW25 series slip ring with 1000M Ethernet
  • No packet loss,no string code,low return loss, low insertion loss
  • Gold-gold plating which ensures low BER(bit-error rate)and high signal-noise ratio

Features

  • Ethernet:1~4 channel 100M/1000M baseT
  • BER(bit-error rate):10E-11
  • Connectors:RJ45
  • Insertion loss:2db
  • Precision ball bearings for long life

Benefits

  • Extremely compact
  • Low torque minimizes system torque budget
  • Custom mechanical integration features
  • 360° continuous rotation
  • Rapid delivery
MODEL TOTAL CIRCUITS AMPS / CIRCUITS DATA SPEED VOLTAGE(V) LENGTH LEAD WIRE LENGTH
ETW251-04S 12 (4x) 2A, (1x) Ethernet 1000Base-T 240 2.834"(72mm) 11.8"(300mm)
ETW251-0410 12 (4x) 10A, (1x) Ethernet 1000Base-T 400 2.834"(72mm) 11.8"(300mm)
ETW251-10S 18 (10x) 2A, (1x) Ethernet 1000Base-T 240 3.78"(96mm) 11.8"(300mm)
ETW251-0210-08S 18 (2x) 10A, (8x) 2A, (1x) Ethernet 1000Base-T 400 3.78"(96mm) 11.8"(300mm)
ETW251-16S 24 (16x) 2A, (1x) Ethernet 1000Base-T 240 4.724"(120mm) 11.8"(300mm)
ETW251-1610 24 (16x) 10A, (1x) Ethernet 1000Base-T 400 4.724"(120mm) 11.8"(300mm)
ETW251-0410-12S 24 (4x) 10A, (12x) 2A, (1x) Ethernet 1000Base-T 400 4.724"(120mm) 11.8"(300mm)
ETW251-22S 30 (22x) 2A, (1x) Ethernet 1000Base-T 240 5.67"(144mm) 11.8"(300mm)
ETW251-0410-18S 24 (4x) 10A, (18x) 2A, (1x) Ethernet 1000Base-T 400 5.67"(144mm) 11.8"(300mm)
