Through Bore Slip Ring STR38 series
STR38 series electric slip ring

Features

  • 2-96 circuits model
  • Speeds up to 500 RPM
  • Precious metal contacts
  • Precision ball bearings for long life

Benefits

  • Rapid delivery
  • Custom mechanical integration features
  • Combined with thermocouple and signal
  • 360° continuous rotation

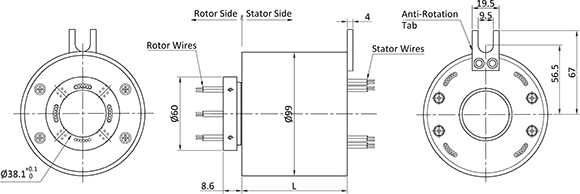

MODEL TOTAL CIRCUITS Power(10A) Signal(5A) VOLTAGE (AC/DC V) LENGTH(mm) LEAD WIRE LENGTH
STR38-S2 2 --- 2 240 30.2 11.8"(300mm)
STR38-P2 2 2 --- 440 30.2 11.8"(300mm)
STR38-P3 3 3 --- 440 33.7 11.8"(300mm)
STR38-P2S2 4 2 2 240 / 440 37.2 11.8"(300mm)
STR38-P4 4 4 --- 440 37.2 11.8"(300mm)
STR38-S6 6 --- 6 240 44.2 11.8"(300mm)
STR38-P6 6 6 --- 440 44.2 11.8"(300mm)
STR38-S12 12 --- 12 240 65.2 11.8"(300mm)
STR38-P12 12 12 --- 440 65.2 11.8"(300mm)
STR38-P2S10 12 6 6 240 / 440 65.2 11.8"(300mm)
STR38-P4S8 12 6 6 240 / 440 65.2 11.8"(300mm)
STR38-P6S6 12 6 6 240 / 440 65.2 11.8"(300mm)
STR38-P6S12 18 6 12 240 / 440 86.2 11.8"(300mm)
STR38-S18 18 --- 18 240 86.2 11.8"(300mm)
STR38-P18 18 18 --- 440 86.2 11.8"(300mm)
STR38-P10S08 18 10 8 240 / 440 86.2 11.8"(300mm)
STR38-P06S18 24 6 18 240 / 440 107.2 11.8"(300mm)
STR38-P12S12 24 12 12 440 107.2 11.8"(300mm)
STR38-S24 24 --- 24 240 107.2 11.8"(300mm)
STR38-P24 24 24 --- 440 107.2 11.8"(300mm)
STR38-P6S24 30 6 24 240 / 440 128.2 11.8"(300mm)
STR38-P18S12 30 18 12 240 / 440 128.2 11.8"(300mm)
STR38-P30 30 30 --- 440 128.2 11.8"(300mm)
STR38-S30 30 --- 30 240 128.2 11.8"(300mm)
STR38-S36 36 --- 36 240 153.2 11.8"(300mm)
STR38-P12S24 36 12 24 240 / 440 153.2 11.8"(300mm)
STR38-P36 36 36 --- 240 153.2 11.8"(300mm)
STR38-S42 42 --- 42 240 174.2 11.8"(300mm)
STR38-P6S36 42 6 36 240 / 440 174.2 11.8"(300mm)
STR38-S48 48 48 --- 240 195.2 11.8"(300mm)
STR38-P12S36 48 12 36 240 / 440 195.2 11.8"(300mm)
STR38-S56 56 -- 56 240 223.2 11.8"(300mm)
STR38-P6S50 56 6 50 240 / 440 223.2 11.8"(300mm)
STR38-P12S44 56 12 44 240 / 440 223.2 11.8"(300mm)
STR38-S72 72 --- 72 240 279.2 11.8"(300mm)
