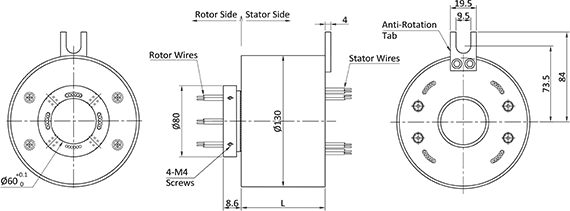

STR60 series electric slip ring
  • STR60 series are standard through hole slip rings ,through hole 60mm
  • OD135mm,intergated structure with plastic & AL alloy
  • Typical application:automation equipment,working turntable,camera platform,robotics
  • Combined with signal wires,coaxial wire and power wire

Features

  • 2-100 circuits model
  • Standard 5A, 10A; 20A for optional
  • Speeds up to 300 RPM
  • Gold-on-gold contacts
  • Precision ball bearings for long life
  • Flying leads

Benefits

  • Direction of lead wire exits
  • Low torque minimizes system torque budget
  • Custom mechanical integration features
  • Combined with thermocouple and signal
  • 360° continuous rotation
  • IP65,IP68 Optional
MODEL TOTAL CIRCUITS Power(10A) Signal(5A) VOLTAGE (AC/DC V) LENGTH LEAD WIRE LENGTH
STR60-S2 2 --- 2 240 1.42"(36mm) 11.8"(300mm)
STR60-P2 2 2 --- 600 1.42"(36mm) 11.8"(300mm)
STR60-P3 3 3 --- 600 1.57"(40mm) 11.8"(300mm)
STR60-S3 3 --- 3 240 1.57"(40mm) 11.8"(300mm)
STR60-P2S1 3 2 1 240 / 600 1.57"(40mm) 11.8"(300mm)
STR60-S6 6 --- 6 240 2.05"(52mm) 11.8"(300mm)
STR60-P6 6 6 --- 600 2.05"(52mm) 11.8"(300mm)
STR60-P2S4 6 2 4 240 / 600 2.05"(52mm) 11.8"(300mm)
STR60-P8S4 12 8 4 240 / 600 2.95"(75mm) 11.8"(300mm)
STR60-S12 12 --- 12 240 2.95"(75mm) 11.8"(300mm)
STR60-P12 12 12 --- 600 2.95"(75mm) 11.8"(300mm)
STR60-P2S10 12 2 10 240 / 600 2.95"(75mm) 11.8"(300mm)
STR60-P4S8 12 4 8 240 / 600 2.95"(75mm) 11.8"(300mm)
STR60-P6S6 12 6 6 240 / 600 2.95"(75mm) 11.8"(300mm)
STR60-P6S12 18 6 12 240 / 600 3.82"(97mm) 11.8"(300mm)
STR60-S18 18 --- 18 240 3.82"(97mm) 11.8"(300mm)
STR60-P18 18 18 --- 600 3.82"(97mm) 11.8"(300mm)
STR60-P10S08 24 10 8 240 / 600 3.82"(97mm) 11.8"(300mm)
STR60-P06S18 24 6 18 240 / 600 4.72"(120mm) 11.8"(300mm)
STR60-P12S12 24 12 12 600 4.72"(120mm) 11.8"(300mm)
STR60-S24 24 --- 24 240 4.72"(120mm) 11.8"(300mm)
STR60-P24 24 24 --- 600 4.72"(120mm) 11.8"(300mm)
STR60-P6S24 30 6 24 240 / 600 5.61"(142.5mm) 11.8"(300mm)
STR60-P18S12 30 18 12 240 / 600 5.61"(142.5mm) 11.8"(300mm)
STR60-P30 30 30 --- 600 5.61"(142.5mm) 11.8"(300mm)
STR60-S30 30 --- 30 240 5.61"(142.5mm) 11.8"(300mm)
STR60-S36 36 --- 36 240 6.54"(166mm) 11.8"(300mm)
STR60-P12S24 36 12 24 240 / 600 6.54"(166mm) 11.8"(300mm)
STR60-P36 36 36 --- 600 6.54"(166mm) 11.8"(300mm)
STR60-S42 42 --- 42 240 7.44"(189mm) 11.8"(300mm)
STR60-P6S36 42 6 36 240 / 600 7.44"(189mm) 11.8"(300mm)
STR60-S48 48 48 --- 240 8.31"(211mm) 11.8"(300mm)
STR60-P12S36 48 12 36 240 / 600 8.31"(211mm) 11.8"(300mm)
STR60-S56 56 --- 56 240 9.49"(241mm) 11.8"(300mm)
STR60-P6S50 56 6 50 240 / 600 9.49"(241mm) 11.8"(300mm)
STR60-P12S44 56 12 44 240 / 600 9.49"(241mm) 11.8"(300mm)
STR60-P18S38 56 18 38 240 / 600 9.49"(241mm) 11.8"(300mm)
STR60-P12S60 72 12 60 240 / 600 11.89"(302mm) 11.8"(300mm)
STR60-S72 72 --- 72 240 11.89"(302mm) 11.8"(300mm)
STR60-S96 96 --- 96 240 15.47"(393mm) 11.8"(300mm)
STR60-P24S72 96 24 72 240 / 600 15.47"(393mm) 11.8"(300mm)
STR60-P12S84 96 12 84 240 / 600 15.47"(393mm) 11.8"(300mm)
STR60-S100 100 --- 100 240 16.34"(415mm) 11.8"(300mm)
