STR180 series electric slip ring
  • STR180 series slip ring are standard through hole slip rings ,through hole 180mm

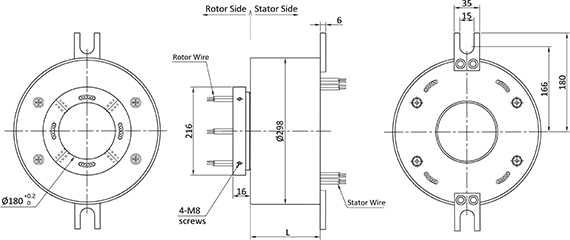

  • OD 298mm,intergated structure with plastic & AL alloy
  • Typical application:automation equipment,working turntable,camera platform,robotics
  • Combined with signal wires,coaxial wire and power wire

Features

  • 2-120 circuits model
  • Speeds up to 150 RPM
  • Gold-on-gold contacts
  • Precision ball bearings for long life
  • Flying leads

Benefits

  • Direction of lead wire exits
  • Custom mechanical integration features
  • Combined with power and signal
  • 360° continuous rotation
  • IP65,IP68 Optional
MODEL TOTAL CIRCUITS Power (10A) Signal(5A) VOLTAGE (AV/DC V) LENGTH LEAD WIRE LENGTH
STR180-P2 2 2 --- 600 3.03"(77mm) 11.8"(300mm)
STR180-S6 6 --- 6 240 3.98"(101mm) 11.8"(300mm)
STR180-P6 6 6 --- 600 3.98"(101mm) 11.8"(300mm)
STR180-P6S6 12 6 6 400 5.39"(137mm) 11.8"(300mm)
STR180-P12 12 12 --- 600 5.39"(137mm) 11.8"(300mm)
STR180-S12 12 --- 12 240 5.39"(137mm) 11.8"(300mm)
STR180-P6S12 18 6 12 240 / 600 6.81"(173mm) 11.8"(300mm)
STR180-S18 18 --- 18 240 6.81"(173mm) 11.8"(300mm)
STR180-P18 18 18 --- 600 6.81"(173mm) 11.8"(300mm)
STR180-P6S18 24 6 18 240 / 600 8.23"(209mm) 11.8"(300mm)
STR180-S24 24 --- 24 240 8.23"(209mm) 11.8"(300mm)
STR180-P24 24 24 --- 600 8.23"(209mm) 11.8"(300mm)
STR180-P12S18 30 12 18 240 / 600 9.66"(245mm) 11.8"(300mm)
STR180-S30 30 --- 30 240 9.66"(245mm) 11.8"(300mm)
STR180-P30 30 30 --- 600 9.66"(245mm) 11.8"(300mm)
STR180-S36 36 --- 36 240 11.06"(281mm) 11.8"(300mm)
STR180-P36 36 36 --- 600 11.06"(281mm) 11.8"(300mm)
STR180-S48 48 --- 48 240 13.94"(354mm) 11.8"(300mm)
STR180-S56 56 --- 56 240 15.79"(401mm) 11.8"(300mm)
STR180-S72 72 --- 72 240 19.57"(497mm) 11.8"(300mm)
STR180-S120 120 --- 120 240 25.98"(660mm) 11.8"(300mm)
