MP12-H Series Rotay Union
MP12-H multiple passage rotary unions with 12 channel for media transfer, design for oil, water in rotating system, each passage is independent, non-interference in each other.
- 12 Passage rotary union designs for oil, water, coolant
- Through bore or non-through bore are available
- Combined with electrical slip ring,transfer power,control signal, data.
Features
- Connection Sizes: 1/8", 1/4", 3/8", 1/2", 3/4", 1"
- Connection Type: NPT & BSPP
- Media Types: Oil, Water, Coolant
MP12-H Operating Info
- Pressure: Max. 350 Bar
- Max. Rotational Speed: 200RPM
- Temperature Range: -18° C to 150° C

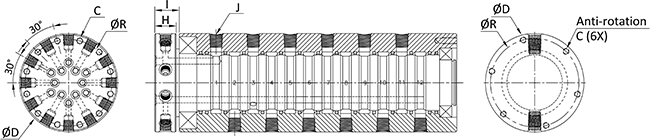

| Model | J(BSPP / NPT) | ФR | C | ФD | H | I | L |
|---|---|---|---|---|---|---|---|
| AP-1201-H | 1/8" | 69 | M6 | 79.5 | 24.5 | 25 | 278.2 |
| AP-1202-H | 1/4" | 79 | M6 | 89.5 | 29.5 | 30 | 328.2 |
| AP-1203-H | 3/8" | 93 | M6 | 104.5 | 32.5 | 33 | 378.9 |
| AP-1204-H | 1/2" | 116 | M8 | 129 | 35.5 | 36 | 429.2 |
| AP-1205-H | 3/4" | 136 | M8 | 149 | 42.5 | 43 | 494.2 |
| AP-1206-H | 1" | 169 | M10 | 184.5 | 56.5 | 57 | 612.5 |
The dimensions would be have little difference according to the media, pressure. Please contact us to get the solutions.
