MP2-H Series Rotay Union
MP2-H multiple passage rotary unions with 2 channel for media transfer, design for oil, water in rotating system, each passage is independent, non-interference in each other.
- 2 Passage rotary union designs for oil, water, coolant
- Through bore or non-through bore are available
- Combined with electrical slip ring,transfer power,control signal, data.
Features
- Connection Sizes: 1/8", 1/4", 3/8", 1/2", 3/4", 1"
- Connection Type: NPT & BSPP
- Media Types: Oil, Water, Coolant
MP2-H Operating Info
- Pressure: Max. 350 Bar
- Max. Rotational Speed: 300RPM
- Temperature Range: -18° C to 150° C
| Model | A(BSPP / NPT) | ФB | ФC | ФD | ФR | ФS | U | W | T | P | F | ФH | L |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MP-201-H | 1/8" | 20.5 | 64.5 | 64.5 | 54 | 42 | 3 | 6 | 24 | 6.5 | M6 | 54 | 114.2 |
| MP-202-H | 1/4" | 22 | 69.5 | 69.5 | 59 | 47 | 3 | 6 | 24 | 6.5 | M6 | 59 | 117.2 |
| MP-203-H | 3/8" | 25.5 | 74.5 | 74.5 | 64 | 52 | 3 | 6 | 24 | 6.5 | M6 | 64 | 126.2 |
| MP-204-H | 1/2" | 31.5 | 89.5 | 89.5 | 76.5 | 63 | 3 | 8 | 32 | 9 | M8 | 76.5 | 149.4 |
| MP-205-H | 3/4" | 38 | 104.5 | 104.5 | 91.5 | 76 | 3 | 9 | 32 | 9 | M8 | 91.5 | 163.5 |
| MP-206-H | 1" | 48 | 129.5 | 129.5 | 114 | 96 | 4 | 10 | 37 | 11 | M10 | 114 | 185.2 |

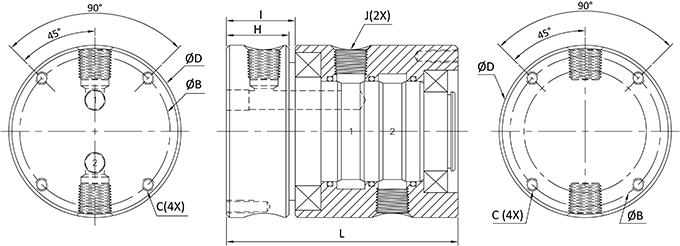

| Model | J(BSPP / NPT) | ФB | C | ФD | H | I | L |
|---|---|---|---|---|---|---|---|
| AP-201-H | 1/8" | 54 | M6 | 64.5 | 19.5 | 20 | 110.2 |
| AP-202-H | 1/4" | 59 | M6 | 69.5 | 22.5 | 23 | 116.2 |
| AP-203-H | 3/8" | 64 | M6 | 74.5 | 28.5 | 29 | 132.2 |
| AP-204-H | 1/2" | 77 | M8 | 89.5 | 33.5 | 34 | 148.7 |
| AP-205-H | 3/4" | 87 | M8 | 99.5 | 42.5 | 43 | 174.5 |
| AP-206-H | 1" | 100 | M10 | 114.5 | 56.5 | 57 | 205.8 |
The dimensions would be have little difference according to the media, pressure. Please contact us to get the solutions.
