MP3-H Series Rotay Union
MP3-H multiple passage rotary unions with 3 channel for media transfer, design for oil, water in rotating system, each passage is independent, non-interference in each other.
- 3 Passage rotary union designs for oil, water, coolant
- Through bore or non-through bore are available
- Combined with electrical slip ring,transfer power,control signal, data.
Features
- Connection Sizes: 1/8", 1/4", 3/8", 1/2", 3/4", 1"
- Connection Type: NPT & BSPP
- Media Types: Oil, Water, Coolant
MP3-H Operating Info
- Pressure: Max. 350 Bar
- Max. Rotational Speed: 300RPM
- Temperature Range: -18° C to 150° C

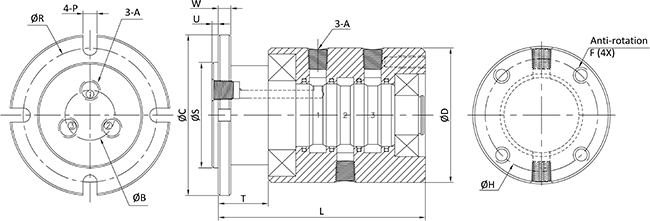

| Model | A(BSPP / NPT) | ФB | ФC | ФD | ФR | ФS | U | W | T | P | F | ФH | L |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MP-301-H | 1/8" | 25 | 69.5 | 69.5 | 59 | 46 | 3 | 6 | 24 | 6.5 | M6 | 59 | 131.4 |
| MP-302-H | 1/4" | 26 | 74.5 | 74.5 | 64 | 51 | 3 | 6 | 24 | 6.5 | M6 | 64 | 135.4 |
| MP-303-H | 3/8" | 29.5 | 79.5 | 79.5 | 69 | 57 | 3 | 6 | 24 | 6.5 | M6 | 69 | 149.9 |
| MP-304-H | 1/2" | 36 | 94.5 | 94.5 | 81.5 | 67.5 | 3 | 8 | 32 | 9 | M8 | 81.5 | 181.4 |
| MP-305-H | 3/4" | 43 | 109.5 | 109.5 | 96.5 | 80.5 | 3 | 9 | 32 | 9 | M8 | 96.5 | 195.5 |
| MP-306-H | 1" | 55 | 134.5 | 134.5 | 119 | 103 | 4 | 10 | 37 | 11 | M10 | 119 | 224.5 |

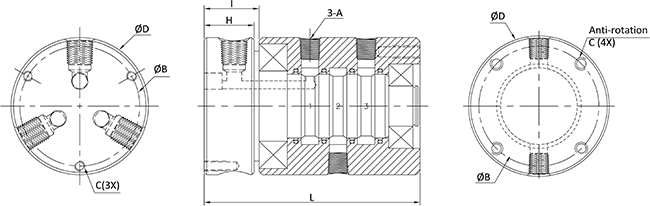

| Model | J(BSPP / NPT) | ФB | C | ФD | H | I | L |
|---|---|---|---|---|---|---|---|
| AP-301-H | 1/8" | 54 | M6 | 64.5 | 19.5 | 20 | 127.4 |
| AP-302-H | 1/4" | 59 | M6 | 69.5 | 22.5 | 23 | 134.4 |
| AP-303-H | 3/8" | 64 | M6 | 74.5 | 28.5 | 29 | 154.9 |
| AP-304-H | 1/2" | 77 | M8 | 89.5 | 33.5 | 34 | 175.4 |
| AP-305-H | 3/4" | 92 | M8 | 104.5 | 42.5 | 43 | 206.4 |
| AP-306-H | 1" | 105 | M10 | 119.5 | 56.5 | 57 | 244.5 |
The dimensions would be have little difference according to the media, pressure. Please contact us to get the solutions.
