MP4-H Series Rotay Union
MP2-H multiple passage rotary unions with 4 channel for media transfer, design for oil, water in rotating system, each passage is independent, non-interference in each other.
- 4 Passage rotary union designs for oil, water, coolant
- Through bore or non-through bore are available
- Combined with electrical slip ring,transfer power,control signal, data.
Features
- Connection Sizes: 1/8", 1/4", 3/8", 1/2", 3/4", 1"
- Connection Type: NPT & BSPP
- Media Types: Oil, Water, Coolant
MP4-H Operating Info
- Pressure: Max. 350 Bar
- Max. Rotational Speed: 300RPM
- Temperature Range: -18° C to 150° C

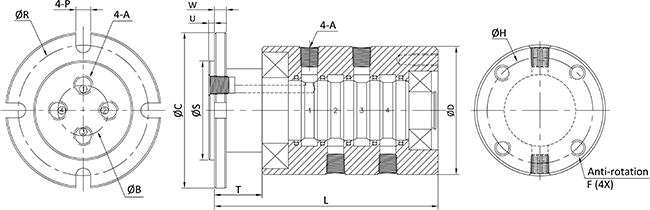

| Model | A(BSPP / NPT) | ФB | ФC | ФD | ФR | ФS | U | W | T | P | F | ФH | L |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MP-401-H | 1/8" | 30 | 74.5 | 74.5 | 64 | 51 | 3 | 6 | 24 | 6.5 | M6 | 64 | 149.8 |
| MP-402-H | 1/4" | 31.5 | 79.5 | 79.5 | 69 | 56 | 3 | 6 | 24 | 6.5 | M6 | 69 | 155.6 |
| MP-403-H | 3/8" | 36 | 89.5 | 89.5 | 79 | 64 | 3 | 6 | 24 | 6.5 | M6 | 79 | 180.6 |
| MP-404-H | 1/2" | 42.5 | 99.5 | 99.5 | 86.5 | 73.5 | 3 | 8 | 32 | 9 | M8 | 86.5 | 209.6 |
| MP-405-H | 3/4" | 53 | 119.5 | 119.5 | 106.5 | 90.5 | 3 | 9 | 32 | 9 | M8 | 106.5 | 230.6 |
| MP-406-H | 1" | 67 | 144.5 | 144.5 | 130 | 114.5 | 4 | 10 | 37 | 11 | M10 | 130 | 266.8 |

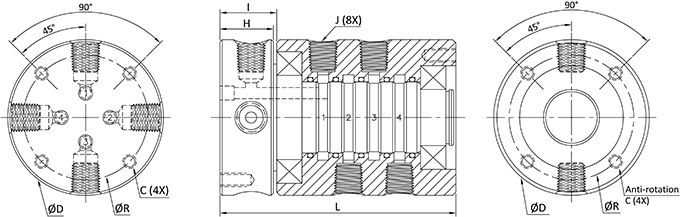

| Model | J(BSPP / NPT) | ФR | C | ФD | H | I | L |
|---|---|---|---|---|---|---|---|
| AP-401-H | 1/8" | 54 | M6 | 64.5 | 19.5 | 20 | 144.8 |
| AP-402-H | 1/4" | 59 | M6 | 69.5 | 22.5 | 23 | 152.9 |
| AP-403-H | 3/8" | 64 | M6 | 74.5 | 28.5 | 29 | 175.9 |
| AP-404-H | 1/2" | 82 | M8 | 94.5 | 33.5 | 34 | 208.6 |
| AP-405-H | 3/4" | 92 | M8 | 104.5 | 42.5 | 43 | 238.6 |
| AP-406-H | 1" | 110 | M10 | 124.5 | 56.5 | 57 | 283.5 |
The dimensions would be have little difference according to the media, pressure. Please contact us to get the solutions.
