MP6-G Series Rotay Union
MP6-G multiple passage rotary unions with 6 channel for media transfer, design for compressed air, gas in rotating system., each passage is independent, non-interference in each other.
- 6 Passage rotary union designs for air, gas, vacuum
- Through bore or non-through bore are available
- Combined with electrical slip ring,transfer power,control signal, data.
Features
- Connection Sizes: M5, 1/8", 1/4", 3/8"
- Connection Type: NPT & BSPP
- Media Types: Air / Gas / Vacuum
MP6-G Operating Info
- Pressure: -100 kPa ~ 1.0 MPa
- Max. Rotational Speed: 300RPM
- Temperature Range: -5° C to 80° C

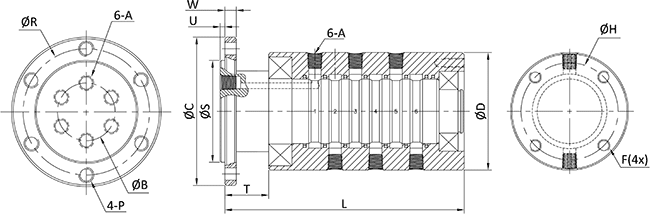

| Model | A(BSPP / NPT) | ФB | ФC | ФD | ФR | ФS | U | W | T | P | F | ФH | L |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MP-601-G | 1/8" | 36 | 74.5 | 57 | 66 | 54 | 3 | 6 | 18 | M5 | M5 | 47 | 109.1 |
| MP-602-G | 1/4" | 39 | 79.5 | 59.5 | 70 | 58 | 3 | 6 | 21.5 | M5 | M5 | 49 | 118 |
| MP-603-G | 3/8" | 58 | 104.5 | 77.5 | 95 | 81.5 | 3 | 7 | 27.5 | M5 | M5 | 67 | 142.5 |
Not all of the model are list in this table, if can not find suitable products, please contact us freely.
